D5500A
| H/W Spec | Resolution | 1024 x 768 (0.55 inch) |
|---|---|---|
| Frame rate | Up to 700Hz at 8bit patterns | |
| Exposure | From 1,368us at 8bit-depth | |
| Memory | 128MB Flash memory | |
| Patterns | Stores up to 120 8bit patterns | |
| Bit-depth | Support 1bit and 8bit patterns | |
| RS-485 | Control up to 8 boards over RS485 | |
| Baudrate | 9600bps/256Kbps | |

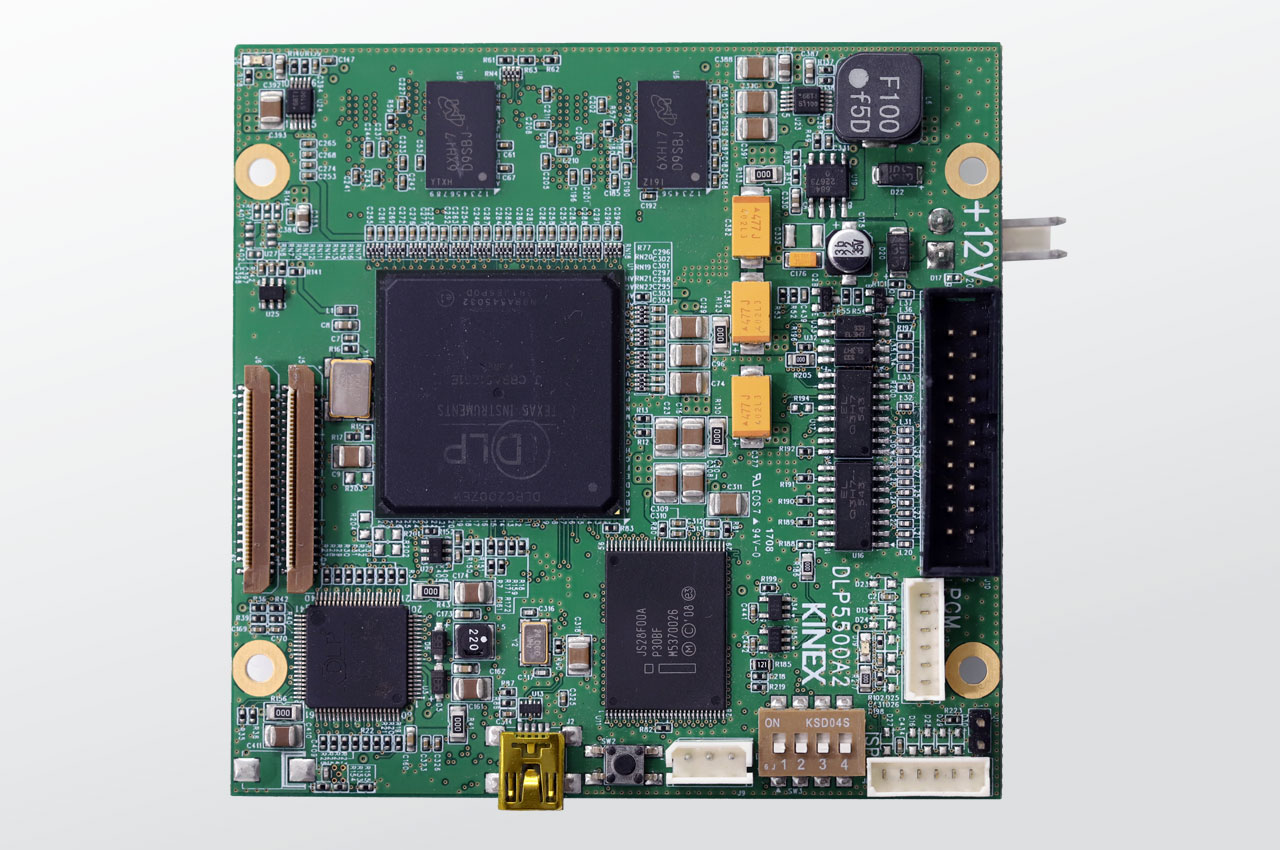

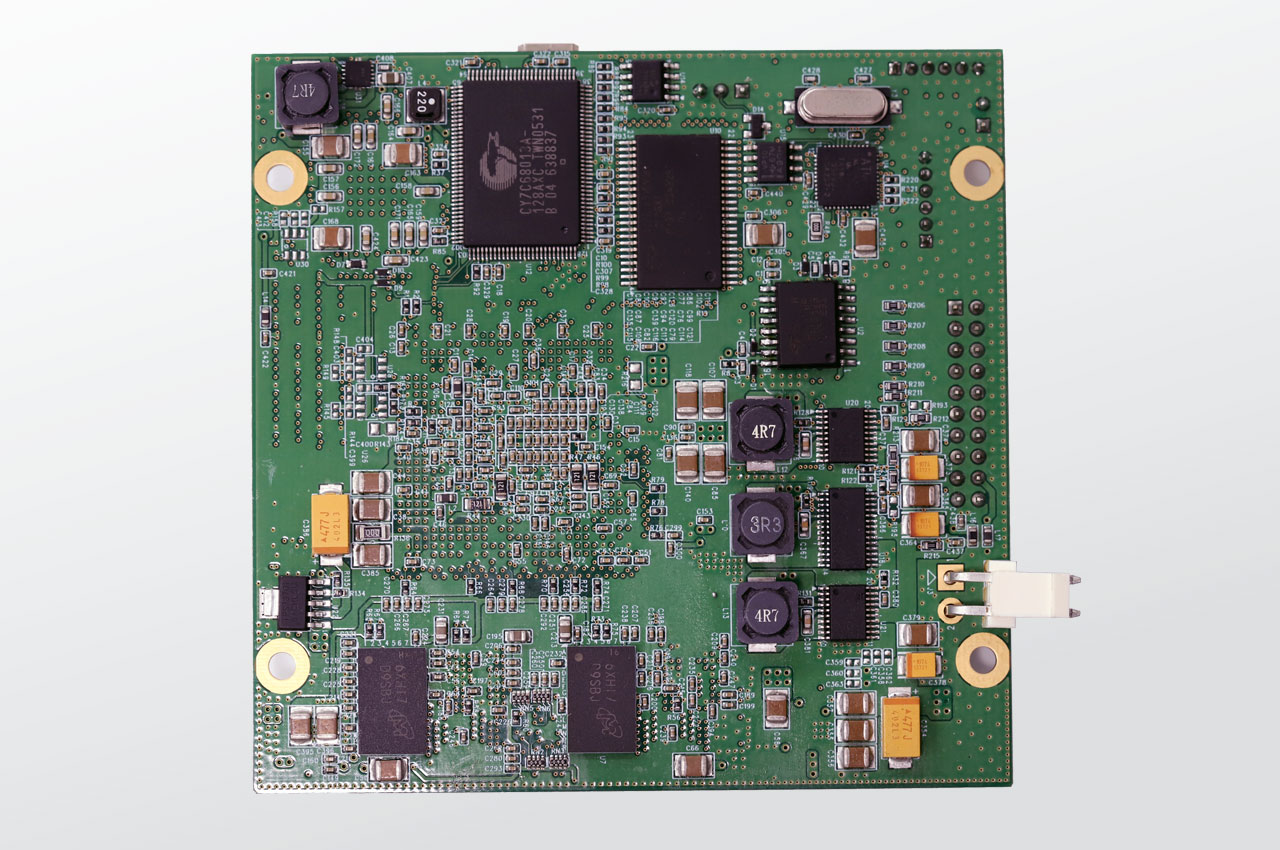

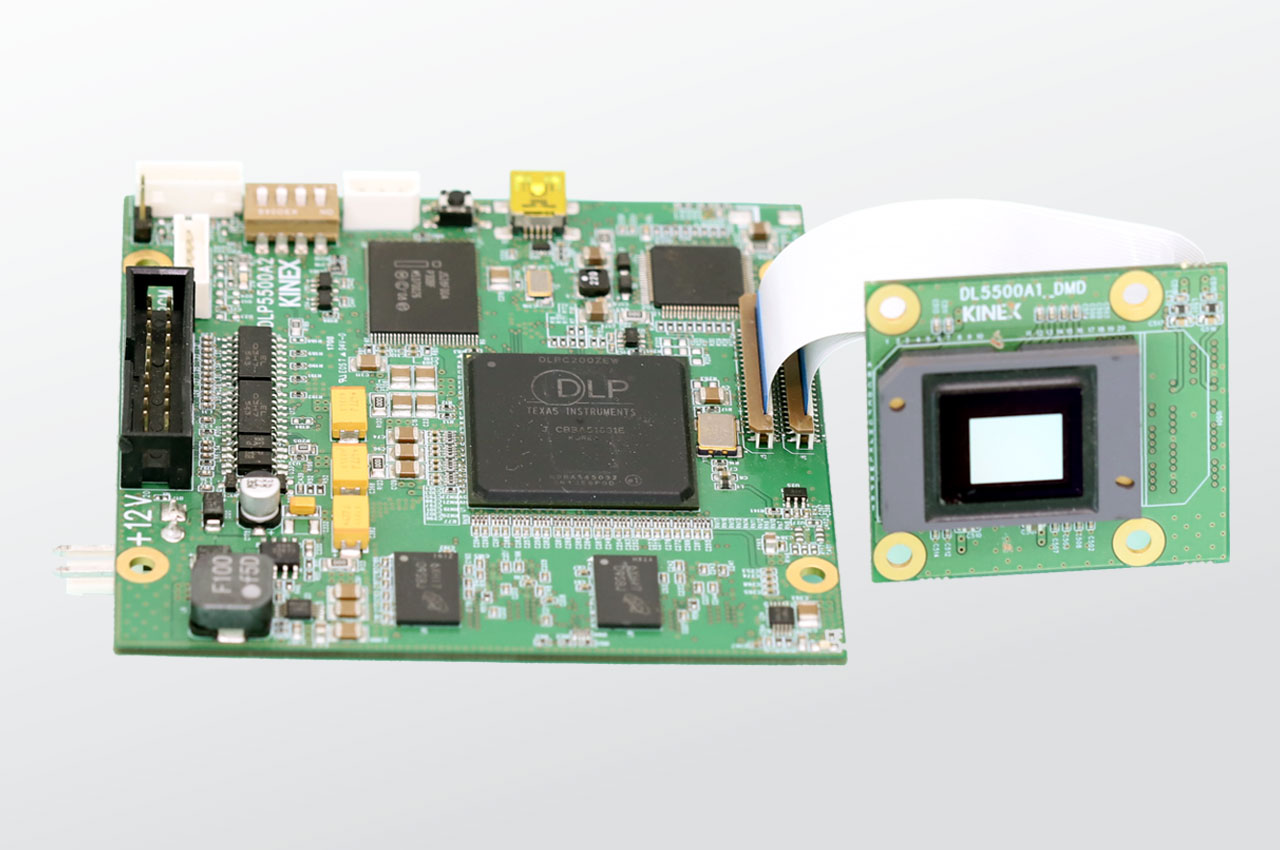

| Board size | 90 x 88 mm (Main board) 45 x 40 mm (DMD board) |
|
| S/W Feature | Patterns | Update display pattern set without HW changes |
| LED | Enable or disable LED light signal | |
| Sync signal | Control output sync signal | |
| Play-once mode | Support | |
| Next mode | Display next image repeatedly | |
| Repeat mode | Support |
