D6500A
| H/W Spec | Resolution | 1920 x 1080 |
|---|---|---|
| Frame rate | Up to 931Hz at 8bit patterns | |
| Exposure | From 969us at 8bit-depth | |
| Memory | 48MB Flash memory | |
| Patterns | Stores up to 50 8bit patterns | |
| Bit-depth | Support from 1bit to 8bit patterns | |
| RS-485 | Control up to 8 boards over RS485 | |
| Baudrate | 38400bps/256Kbps | |

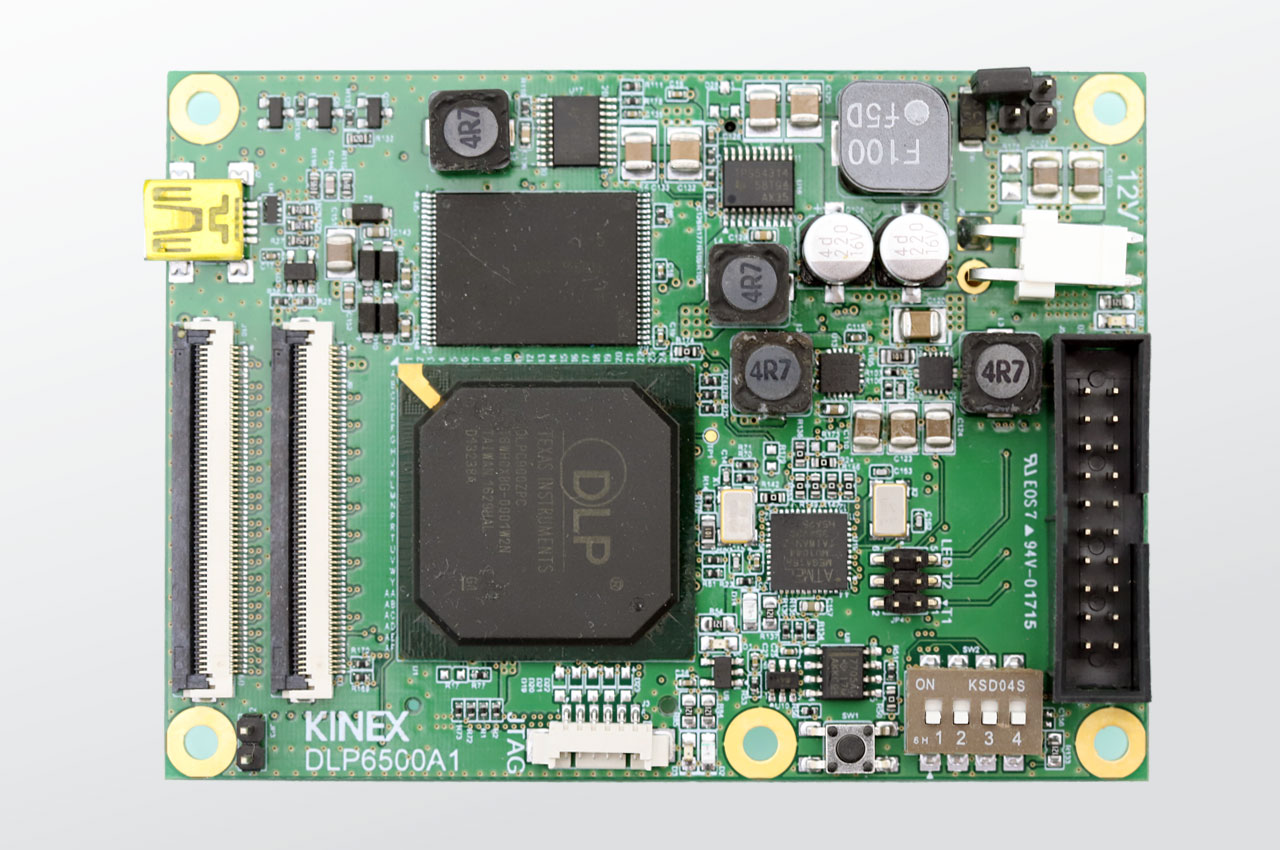

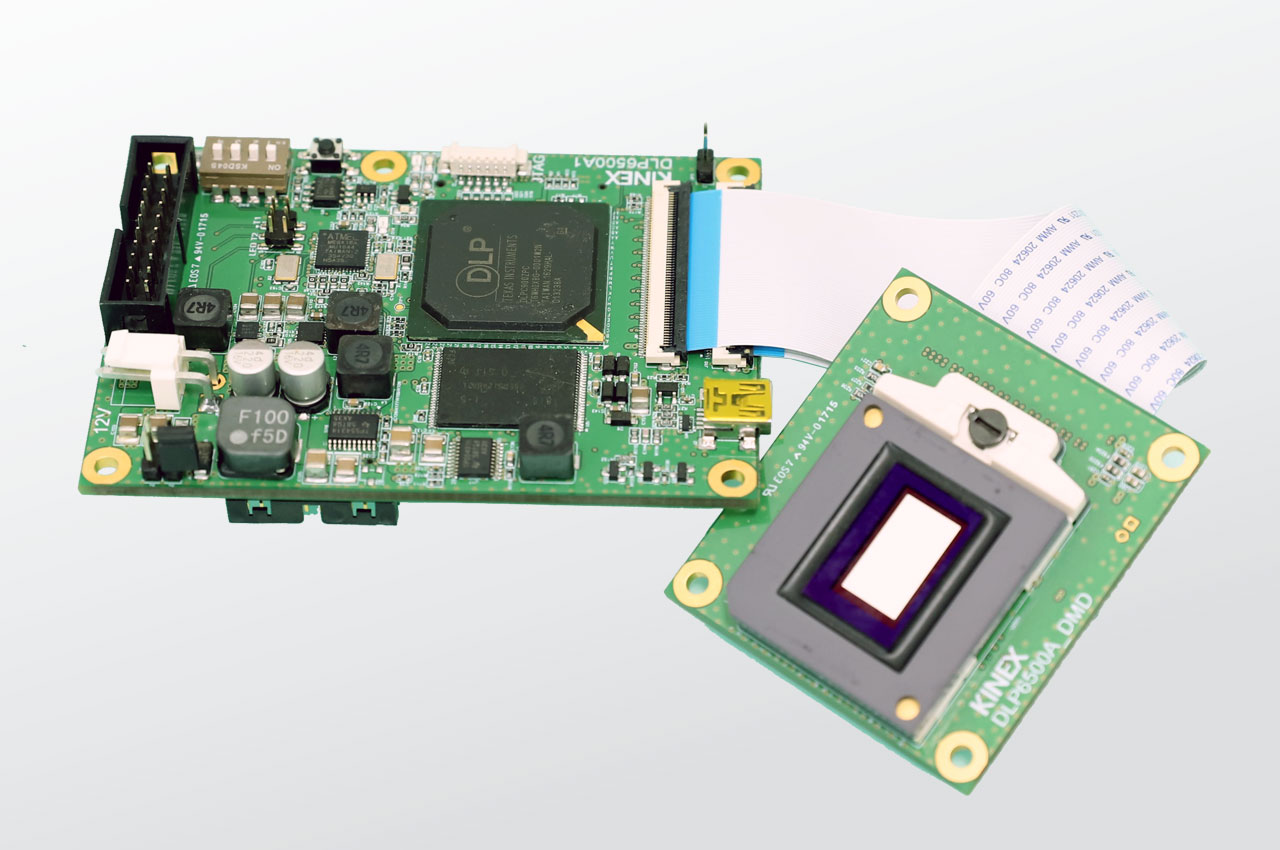

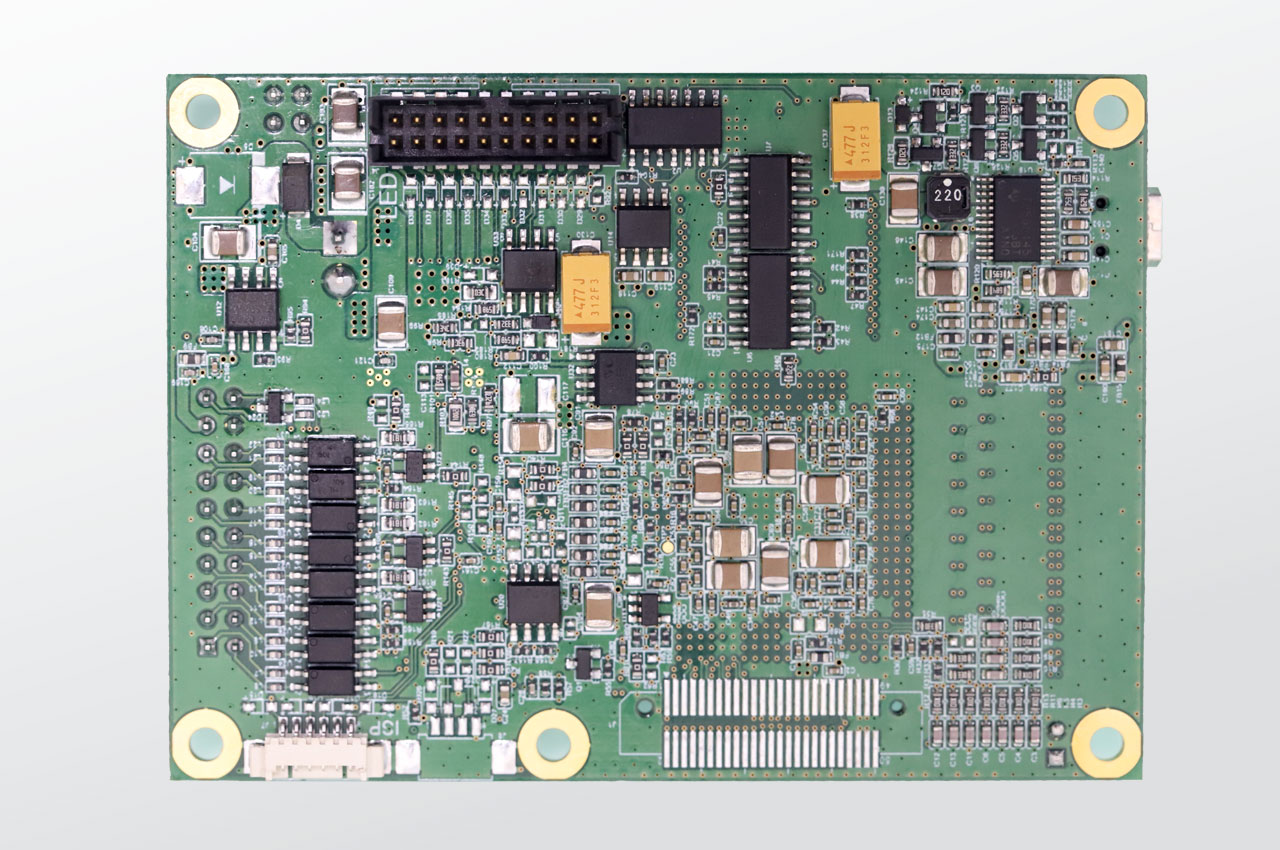

| Board size | 90 x 65 mm (Main board) 55 x 50 mm (DMD board) |
|
| S/W Feature | Patterns | Update display pattern set without HW changes |
| LED | Enable or disable LED light signal Control LED intensity and enable/disable |
|
| Sync signal | Control output sync signal Control input trigger signal |
|
| Play-once mode | Support | |
| Next mode | Display next image once | |
| Repeat mode | Support |
